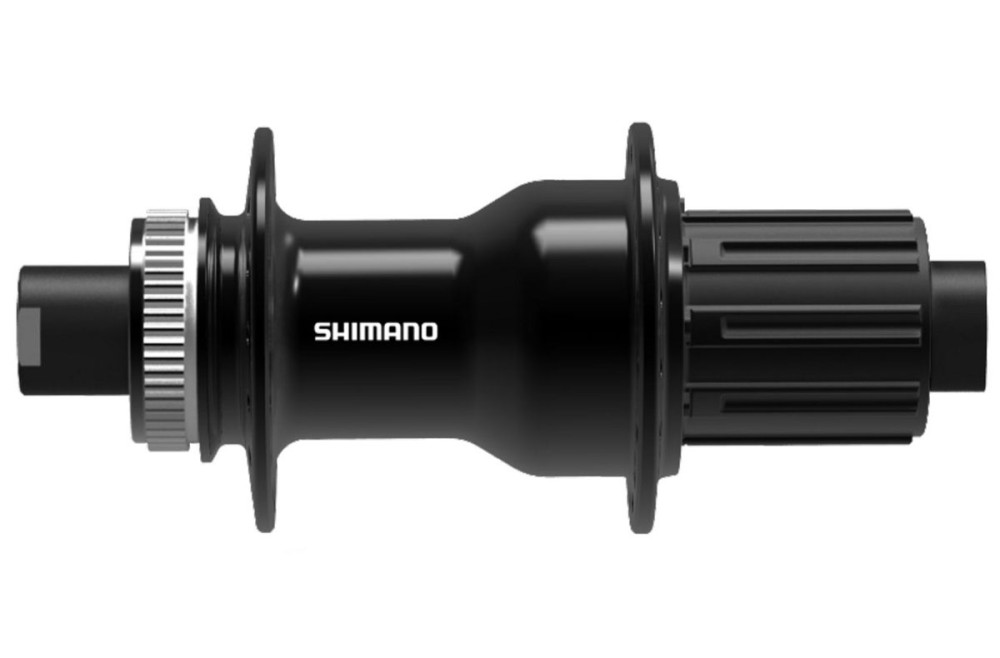

The Shimano FH-TC500-HM rear hub with center-lock disc brake mount offers the well-known reliability and performance for 8-/9-/10-/11-speed cassettes in the E-Thru thru-axle design. Robust, easily adjustable and durable FREEHUB rear hub for disc brakes with high quality seals.

---

Features - Shimano FH-TC500-HM 8/9/10/11-speed Center-Lock Rear Hub | 12x142mm

• Simple setup and reliable trail performance
• Easy disc brake rotor installation with spline mount and lock ring
• Stiff and lightweight 12 mm E-THRU skewer system
• Labyrinth & Contact Sealing
• O.L.D.: 142mm
• #13 and #14 spoke compatible

Product features

• Use: MTB, Trekking
• Model: FH-TC500-HM
• Freehub body: Shimano 8-/9-/10-/11-speed
• Brake type: Center Lock Disc
• Flange distance: 55.45mm
• Offset: 7.6mm
• P.C.D.: left 50.5mm / right 51.5mm
• Flange diameter: left 59.3mm / right 60.3mm
• Hub: Labyrinth and contact seals
• Type: E-Thru Axle
• Axle length: 12x142mm

Spoke hole (choose variant)

• 36 hole

Material
