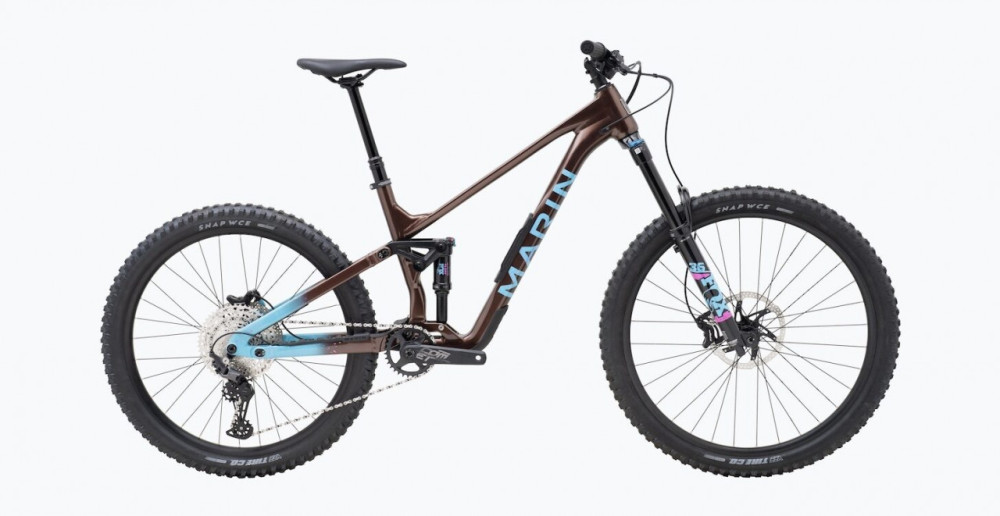

Kolo MARIN Alpine Trail 1, modrá/hnedá
Výrobce: MARIN
| rám: | All New Series 4 6061 Aluminum, 29 Wheels, 160mm Travel MultiTrac LT Suspension |
| přední kolo / náboj: | Shimano FH-TC500, 110x15mm / Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, |
| zadní kolo / náboj: | Shimano HB-TC500, 148x12mm, Micro Spline Freehub Body / Marin, Double Wall Alloy |
| pláště: | Vee Tire Co. Snap WCE, 29x2.6 Front 27.5x2.6 Rear, Top 40 Compound, Enduro Core, |
| přehazovačka: | Shimano Deore, 12-Speed, SGS |
| sedlo: | Marin Speed Concept |
| řetěz: | KMC X-12 Silver and Black |
| vidlice: | Fox 36 Rhythm, 170mm Travel, 29 Grip Damper, 110x10 Kabolt, 44mm Offset |
| brzdové páky: | TRP Slate EVO Hydraulic, I-Spec EV Compatible |
| brzdy: | TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor / TRP Slate EVO, |
| řazení: | Shimano Deore, 12-Speed, SL-6100-IR |
| kliky: | FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technolo |
| kazeta: | Shimano, Deore M6100 12-Speed, 10-51T |
| EAN: | 0843346126115 |
| sedlovka: | TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, |
| zadní tlumič: | Fox Float Performance, 205x65, 30xM8 Lower Hardware, Custom Tune |
| modelový rok: | 2025 |
VELIKOSTI: XL-NAD 186CM,
ZVOLENOU VARIANTU ZADEJTE DO POLE POZNÁMKA PRO PRODEJCE
Geometry
Geometry configuration
- Front/Rear Wheels: F: 29"/R: 27.5"
- BB and Chainstay: High BB/Short CS
- Headtube Angle: 0° Headset Cup
| S | M | L | XL | |
|---|---|---|---|---|
| A STACK | 620.08 | 633.51 | 642.6 | 646.93 |
| B REACH | 430 | 460 | 490 | 520 |
| C HEADTUBE ANGLE | 63.5° | 63.5° | 63.5° | 63.5° |
| D HEADTUBE LENGTH | 100 | 115 | 125 | 130 |
| E SEATTUBE ANGLE | 79.2° | 79° | 78.8° | 78.6° |
| F SEATTUBE LENGTH | 400 | 420 | 430 | 460 |
| G TOPTUBE EFFECTIVE | 556 | 592 | 626 | 659 |
| H BB HEIGHT | 352 | 352 | 352 | 352 |
| I BB DROP (REAR/FRONT) | 7/24 | 7/24 | 7/24 | 7/24 |
| J CHAINSTAY | 435 | 435 | 435 | 435 |
| K WHEELBASE | 1211.42 | 1248.11 | 1282.57 | 1317.8 |
| L STANDOVER HEIGHT | 683.32 | 68 9.88 | 695.6 | 698.13 |
| M FORK OFFSET | 44 | 44 | 44 | 44 |
| SEATPOST DIAMETER | 34.9 | 34.9 | 34.9 | 34.9 |
| HANDLEBAR WIDTH | 780 | 780 | 780 | 780 |
| STEM LENGTH | 35 | 35 | 35 | 35 |
| CRANK LENGTH | 170 | 170 | 170 | 170 |
Kód zboží: MARINRZHM
Naše cena: 65 999,00 Kč (vč. DPH)
